Firmware#

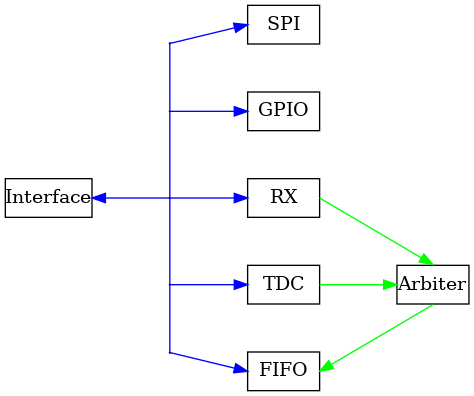

The FPGA firmware is built around a simple single-master bus connecting a set of standard modules. Control modules (SPI, GPIO) configure the DUT, while data-taking modules (receivers, TDCs) pass 32-bit words through an arbiter into a FIFO that the host can continuously read. Each word carries a source identifier so the host can demultiplex data from different modules.
![digraph {
rankdir=LR;
splines=polyline;
nodesep=0.5;
ranksep=0.8;
node [shape=box, fixedsize=true, width=0.75, height=0.4];
j1 [shape=point, width=0.01];
j2 [shape=point, width=0.01];
j3 [shape=point, width=0.01];
j4 [shape=point, width=0.01];
j5 [shape=point, width=0.01];
Interface [fixedsize=true, width=0.9, height=0.4];
Interface -> j3 [color=blue, arrowhead=none, dir=back];
j1 -> j2 [color=blue, arrowhead=none];
j2 -> j3 [color=blue, arrowhead=none];
j3 -> j4 [color=blue, arrowhead=none];
j4 -> j5 [color=blue, arrowhead=none];
j1 -> SPI [color=blue, headport=w, tailport=e];
j2 -> GPIO [color=blue, headport=w, tailport=e];
j3 -> RX [color=blue, headport=w, tailport=e];
j4 -> TDC [color=blue, headport=w, tailport=e];
j5 -> FIFO [color=blue, headport=w, tailport=e];
RX -> Arbiter [color=green, headport=n, tailport=e];
TDC -> Arbiter [color=green, headport=w, tailport=e];
Arbiter -> FIFO [color=green, headport=e, tailport=s];
{ rank=same; j1; j2; j3; j4; j5; }
{ rank=same; SPI; GPIO; RX; TDC; FIFO; }
}](_images/graphviz-bb283b936f73ce29c50575159ede2856d360df9d.png)
Timing diagrams#
The bus signals are BUS_CLK, BUS_WR, BUS_RD, BUS_ADD (address), and BUS_DATA. Writes and reads each complete in a single clock cycle.
Single write: Assert BUS_WR for one cycle while placing the address and data on the bus.
Single read: Assert BUS_RD for one cycle with the address. Module responds with data on the following cycle.
